Hyundai Tucson (LM) 2010-2015 Service Manual / Body (Interior and Exterior) / Seat & Power Seat / Front Seat Components and Components Location

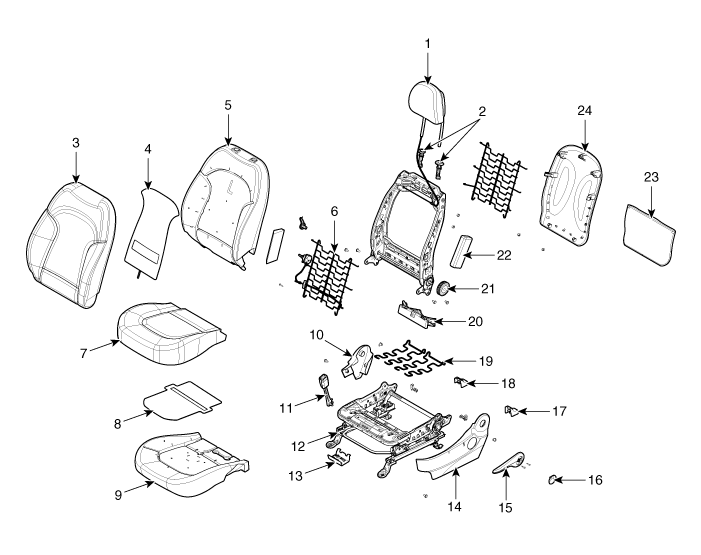

Components

1. Headrest
2. Headrest guide
3. Seat back cover
4. Seat back heater
5. Seat back pad
6. Power rumber support assembly
7. Seat cushion cover
8. Seat cushion heater

9. Seat cushion pad
10. Shield inner cover
11. Front seat buckle
12. Seat cushion frame assembly
13. Connector bracket LH
14. Shield cover
15. Adjuster height lever LH
16. Adjuster height lever cap

17. Outer cover foot LH
18. Inner cover foot LH
19. Splitted pan cushion
20. Driven body headrest active
21. Recliner knob dial
22. Side airbag module
23. Seat back map pocket
24. Seat back cover

Front Seat Repair procedures

Replaccement Seat Assembly Replacement 1. Remove the seat mounting cover. 2. After loosening the seat assembly mounting bolts, remove the seat assembly (A). Tightening torque : 44.1 ~ 58. ...
