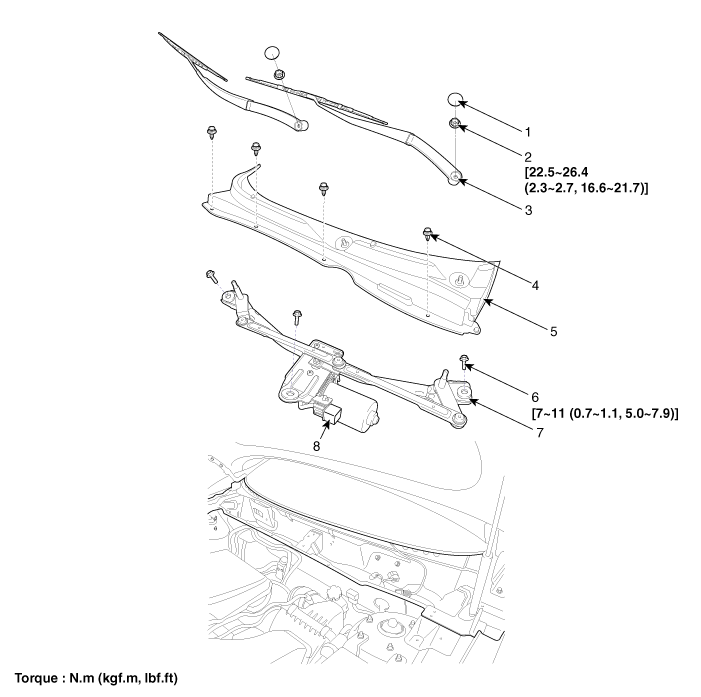

Component Location

1. Cap
2. Nut
3. Wiper arm & blade
4. Retainer
5. Cowl top cover
6. Bolt
7. Wiper motor & linkage assembly
8. Wiper motor connector

Windshield Wiper-Washer Switch Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the steering column upper and lower shrouds (A) after removing 3 screws.     Take care not to damage and s ...

Front Wiper Motor Repair procedures
Removal 1. Remove the windshield wiper arm and blade after removing a nut (B) and wiper cap (A). 2. Remove the windshield wiper arm and blade (A) after removing a nut. 3. If necessary, rel ...
