Hyundai Tucson: Headlight, parking light, turn signal light, side marker and front fog light bulb replacement / Headlight

Halogen bulb

WARNING

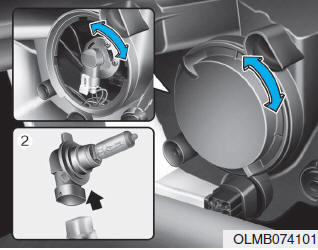

1. Open the hood.

2. Remove the headlamp bulb cover by turning it counterclockwise.

3. Disconnect the headlamp bulb socket-connector.

4. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

5. Remove the bulb by pulling it out.

6. Insert a new bulb into the socket.

7. Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly.

Push the socket into the assembly and turn the socket clockwise.

8. Install the headlight bulb cover by turning it clockwise.

Headlight, parking light, turn signal light, side marker and front fog light bulb replacement
(1) Turn signal light (2) Headlight (High/Low) (3) Parking (Position) light/ Daytime running light (4) Parking (Position) light (5) Side marker (6) Fog light ...

Turn signal light
1. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly. 2. Remove the bulb from the socket by pressing i ...
