Hyundai Tucson: Headlight, parking light, turn signal light, side marker and front fog light bulb replacement / Turn signal light

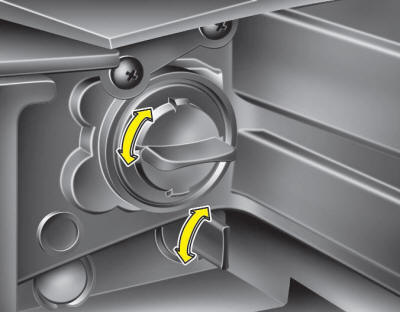

1. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.
2. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket
3. Insert a new bulb into the socket and rotating it until it locks into place.
4. Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly.
Push the socket into the assembly and turn the socket clockwise.
Headlight
Halogen bulb
WARNING
Handle halogen bulbs with care. Halogen bulbs contain pressurized gas
that will produce flying pieces of glass that could cause injuries if broken.
Wear eye protecti ...
Parking (Position) light bulbs
If the LED light does not operate, have the vehicle checked by an authorized
HYUNDAI dealer. ...
