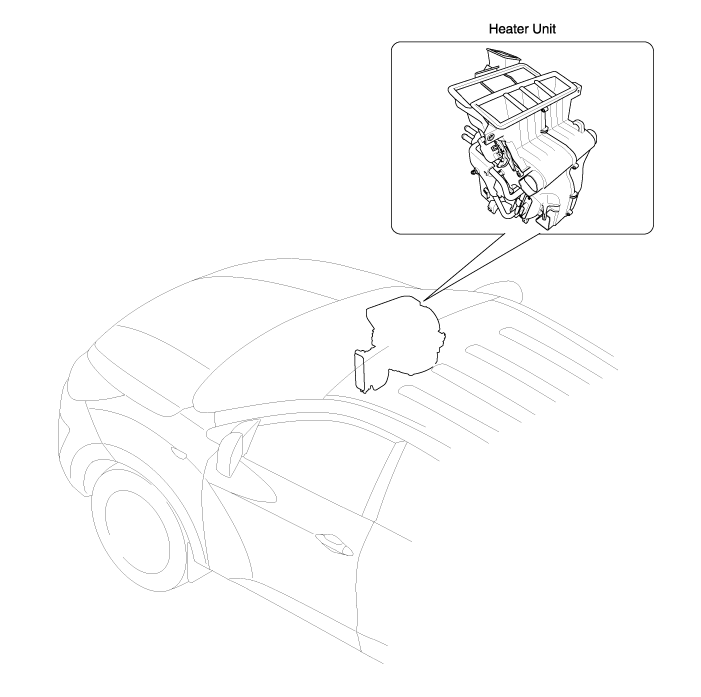

Component Location

Components

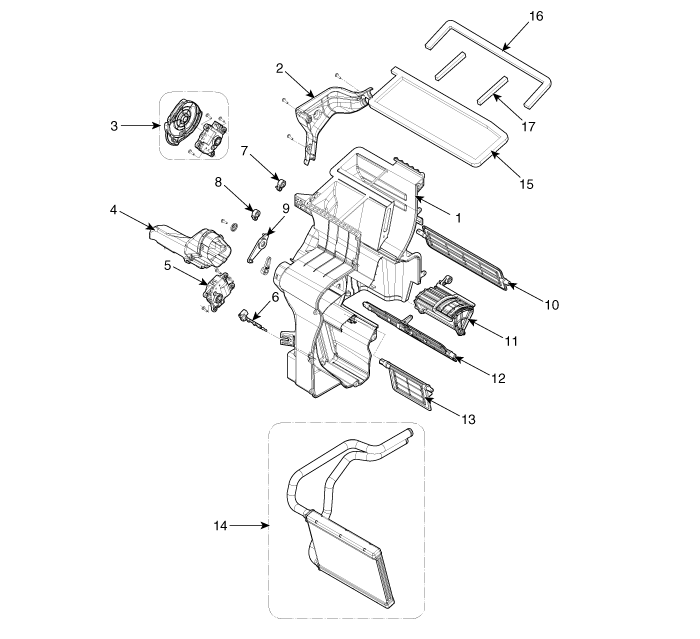

1. Heater Case (LH)
2. Heater Core Cover
3. Mode Actuator
4. Shower Duct (LH)
5. Temp Actuator (Drive)
6. Evaporator Sensor

7. Def Door Lever
8. Vent Door Lever
9. Foot Sub Lever
10. Def Door
11. Vent Door (LH)
12. Foot Door

13. Mix Door (LH)(Auto Type)
14. Heater Core
15. Duct Seal C
16. Duct Seal A
17. Duct Seal B

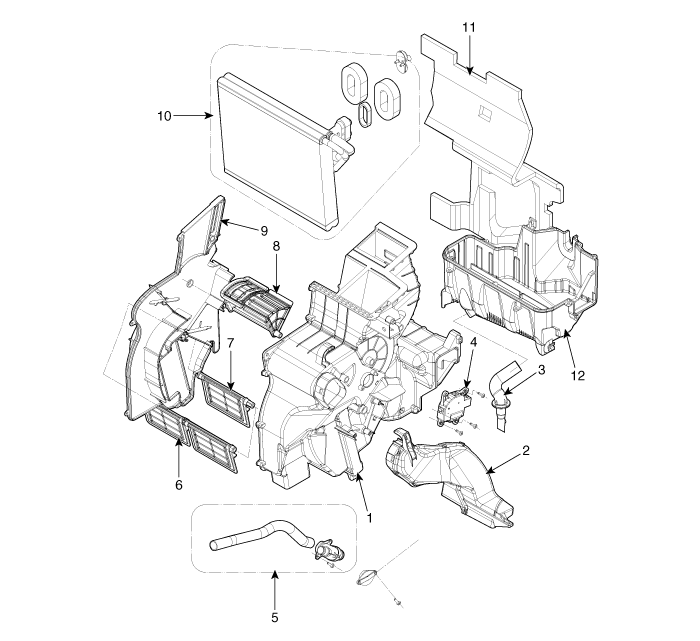

1. Heater Case (RH)
2. Shower Duct (RH)
3. Drain Hose
4. Temp Actuator (Passenger)

5. Aspirator Hose (Auto Type)
6. Mix Door (Manual Type)
7. Mix Door (RH) (Auto Type)
8. Vent Door (RH)

9. Blind Case
10. Evaporator Core
11. NVH Pad
12. Heater Lower Case

Heater Unit Repair procedures

Replacement 1. Disconnect the negative (-) battery terminal. 2. Recover the refrigerant with a recovery/ recycling/ charging station. 3. When the engine is cool, drain the engine coola ...
