Hyundai Tucson: Engine Control System / Heated Oxygen Sensor (HO2S) Schematic Diagrams

Hyundai Tucson (LM) 2010-2015 Service Manual / Engine Control / Fuel System / Engine Control System / Heated Oxygen Sensor (HO2S) Schematic Diagrams

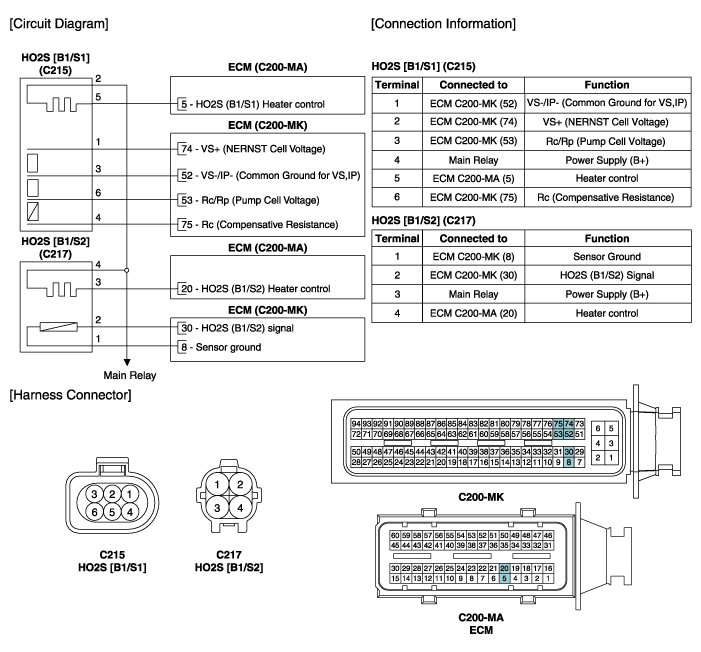

Circuit Diagram

(M/T)

(A/T)

Heated Oxygen Sensor (HO2S) Specifications

Specification HO2S [Bank 1/Sensor 1] (Linear type) ItemSpecificationHeater Resistance (x)2.4 ~ 4.0 [20°C(68°F)] HO2S [Bank 1/Sensor 2] (Binary type) A/F Ratio (x)Output Voltage(V)RICH0.6 ~ ...

Heated Oxygen Sensor (HO2S) Repair procedures

Inspection 1. Turn the ignition switch OFF. 2. Disconnect the HO2S connector. 3. Measure resistance between the HO2S terminals 2 and 5 [B1/S1]. 4. Measure resistance between the HO2S t ...
