Hyundai Tucson: Light bulbs / License plate light bulb replacement

Hyundai Tucson (LM) 2010-2015 Owners Manual / Maintenance / Light bulbs / License plate light bulb replacement

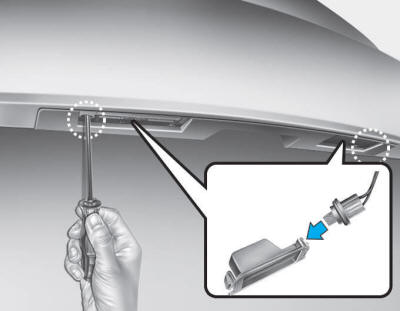

1. Loosen the lens retaining screws with a philips head screwdriver.

2. Remove the lens.

3. Remove the bulb by pulling it straight out.

4. Install a new bulb.

5. Reinstall the lens securely with the lens retaining screws.
