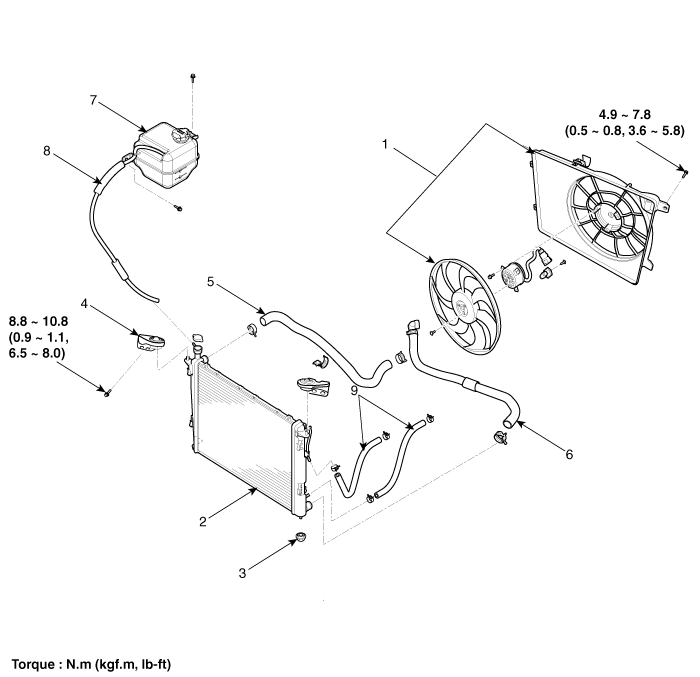

Components

1. Cooling fan assembly
2. Radiator
3. Mounting insulator
4. Radiator upper mounting bracket
5. Radiator upper hose

6. Radiator lower hose
7. Reservoir tank
8. Over flow hose
9. ATF cooler hose

Components and Components Location

Components Location 1. Automatic transaxle2. Valve body assembly3. Oil pump assembly ...

Oil Cooler Repair procedures

Inspection Radiator Cap Testing 1. Remove the radiator cap, wet its seal with engine coolant, and then install it on a pressure tester. 2. Apply a pressure of 93.16 ~ 122.58 kPa (0.95 ~ 1.25 ...
