Hyundai Tucson: Airbag Module / Passenger Airbag (PAB) Module Components and Components Location

Hyundai Tucson (LM) 2010-2015 Service Manual / Restraint / Airbag Module / Passenger Airbag (PAB) Module Components and Components Location

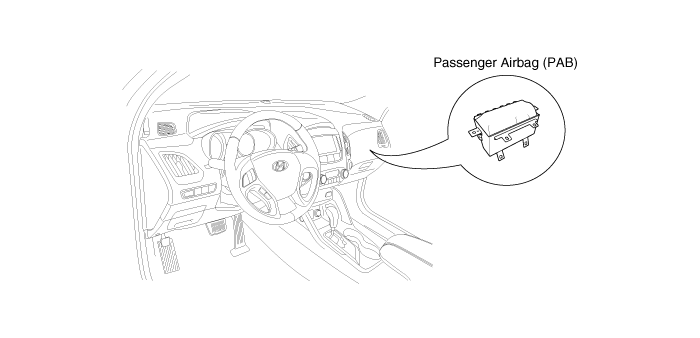

Components

Passenger Airbag (PAB) Module Description and Operation
Description The passenger airbag (PAB) is installed inside the crash pad and protects the front passenger in the event of a frontal crash. The SRSCM determines if and when to deploy the PAB. ...

Passenger Airbag (PAB) Module Repair procedures
Removal 1. Disconnect the battery negative cable and wait for at least three minutes before beginning work. 2. Remove the glove box housing. (Refer to the Body group- crash pad). 3. Discon ...

Other information:

Hyundai Tucson (LM) 2010-2015 Service Manual: Mode Control Actuator Repair procedures
Inspection 1. Ignition "OFF” 2. Disconnect the connector of mode control actuator. 3. Verify that the mode control actuator operates to the defrost mode when connecting 12V to the terminal 3and grounding terminal 4. 4. Verify that the mode control actuator operates to the vent mo ...

Hyundai Tucson (LM) 2010-2015 Service Manual: Evaporator Core Repair procedures
Replacement 1. Remove the crash pad. (Refer to Heater - "Heater Unit") 2. Loosen the heater unit lower case mount screw and then remove the heater unit lower case (A). 3. Remove the evaporator core (A). 4. Install in the reverse order of removal. ...
