Hyundai Tucson (LM) 2010-2015 Service Manual / Body Electrical System / Power Windows / Power Window Switch Components and Components Location

Components

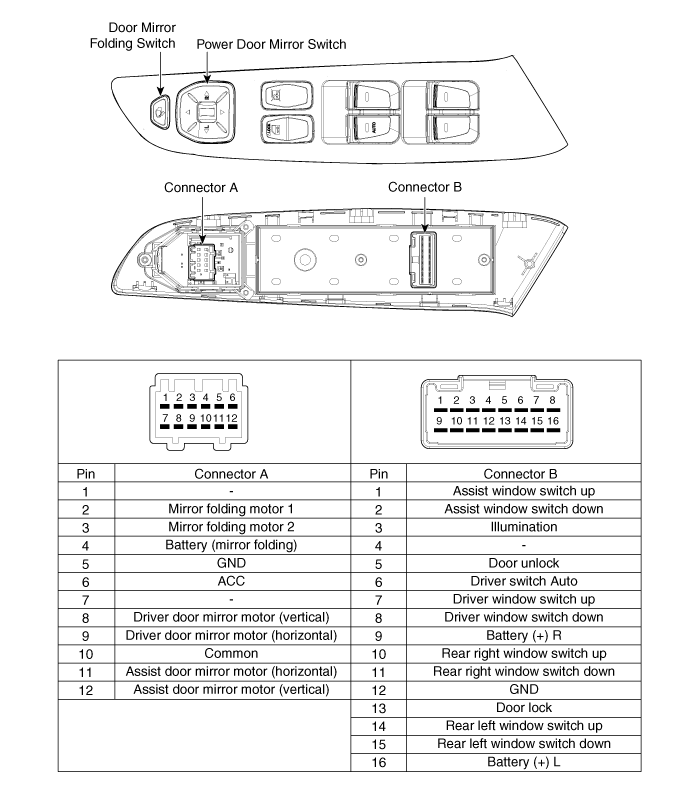

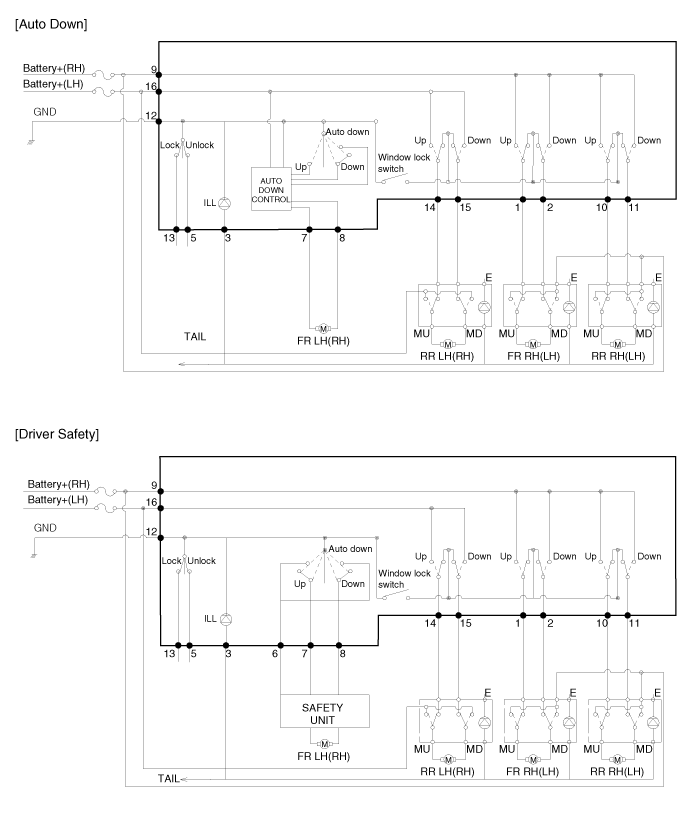

Power Window Main Switch

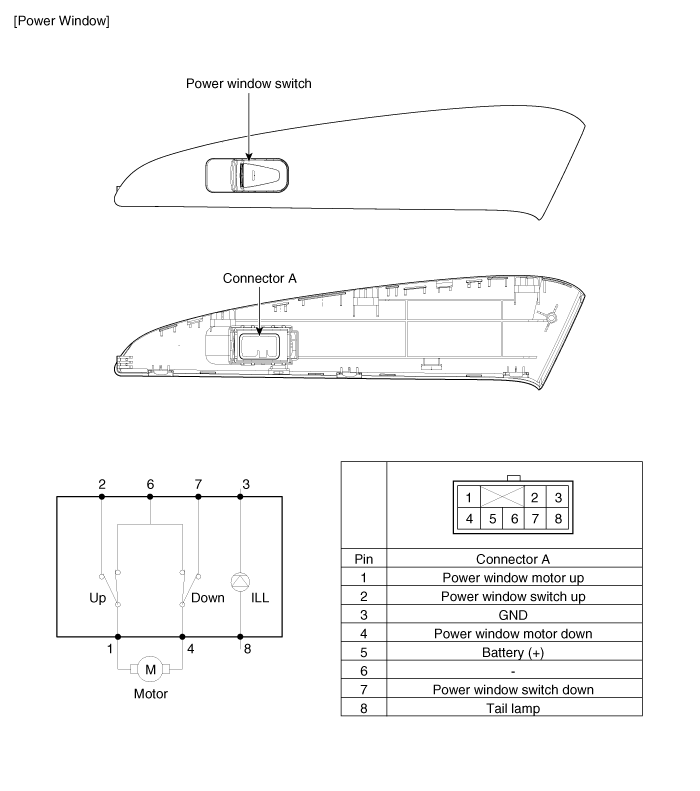

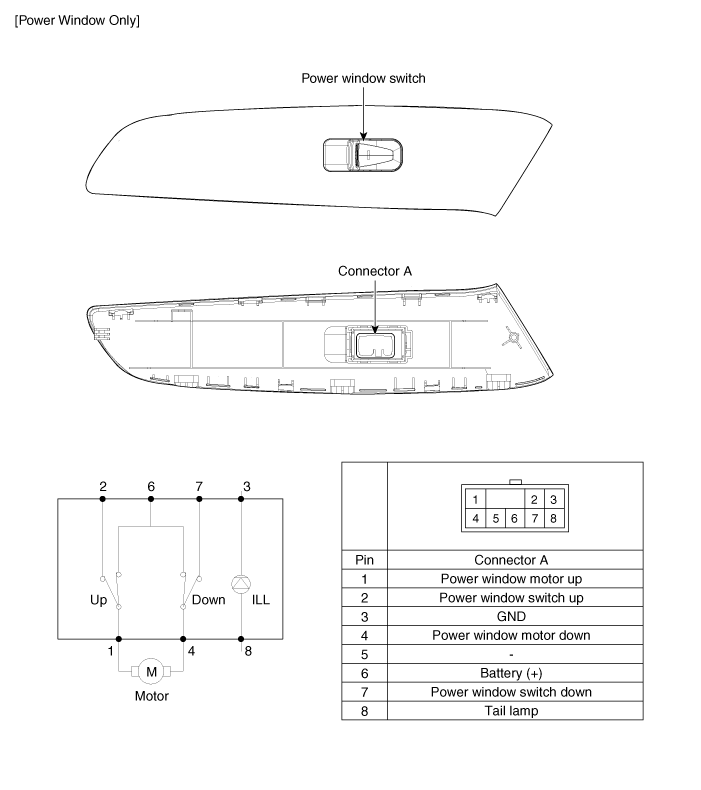

Passenger Power Window Switch

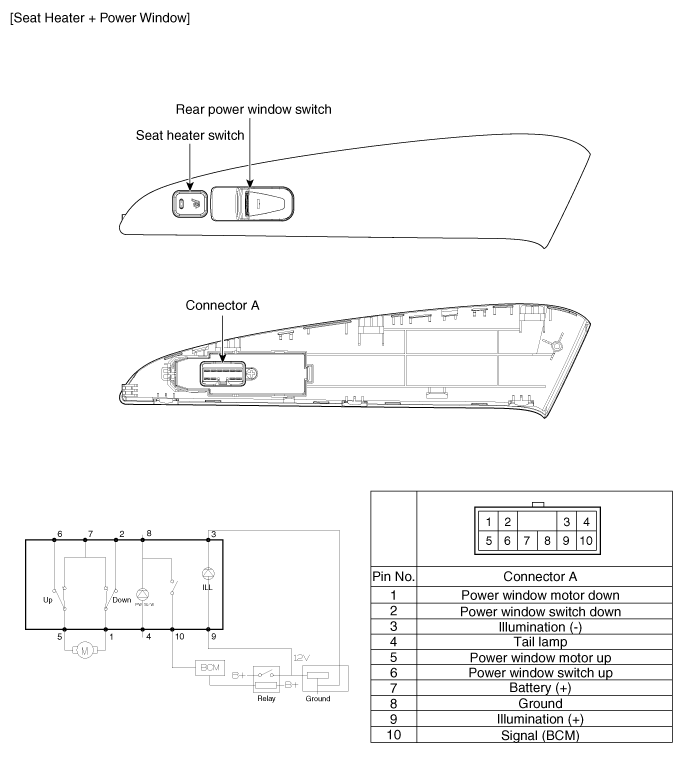

Rear Power Window Switch

Power Window Motor Repair procedures
Inspection Front Power Window Motor 1. Remove (-) negative battery terminal. 2. Remove the front door trim. (Refer to the BD group - "Front door") 3. Disconnect the connector from the m ...

Power Window Switch Repair procedures
Inspection Main Power Window Switch Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the front door trim and power window switch. (Refer to the BD group - "Front door") ...
