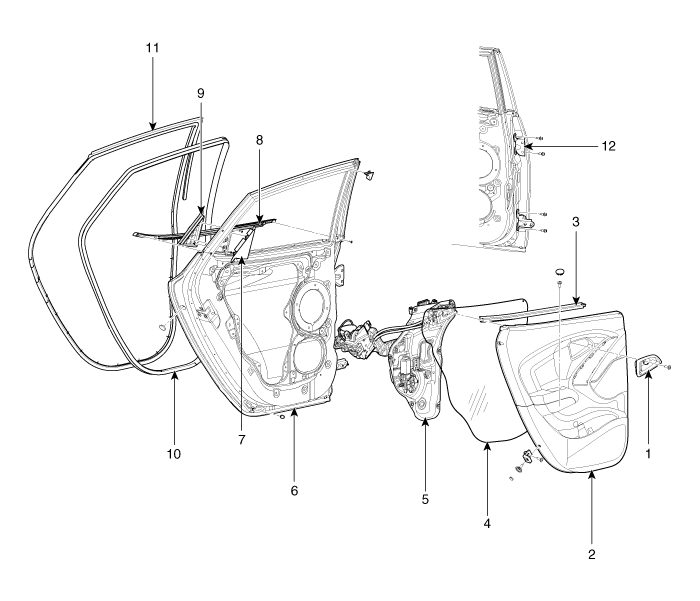

Components

1. Door inside handle housing
2. Door trim
3. Door belt inner weatherstrip
4. Door screen
5. Door module
6. Door panel
7. Door delta inner cover
8. Door belt outside weatherstrip
9. Door delta molding cover
10. Door side weatherstrip
11. Body side weatherstrip
12. Door hinge
