Hyundai Tucson: Front seats / Manual adjustment

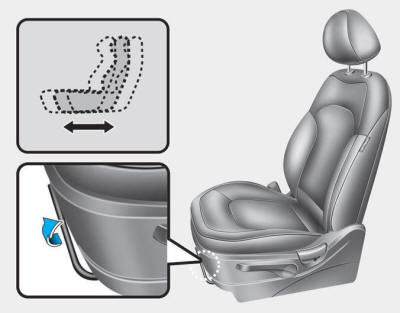

Forward and rearward adjustment
To move the seat forward or rearward:
1. Pull up the seat slide adjustment lever and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place. Move forward and rearward without using the lever. If the seat moves, it is not locked properly.

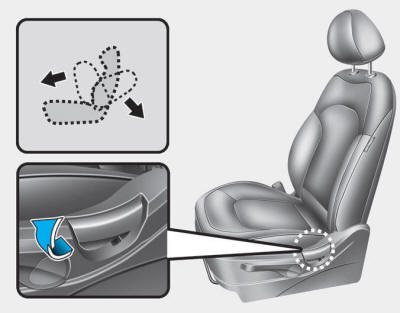

Seatback angle
To recline the seatback:
1. Lean forward slightly and lift up the seatback lever.
2. Carefully lean back on the seat and adjust the seatback to the position you desire.
3. Release the lever and make sure the seatback is locked in place.
(The lever MUST return to its original position for the seatback to lock.)
Front seats
WARNING
Take the following precautions when adjusting your seat:
NEVER attempt to adjust the seat while the vehicle is moving. The seat
could respond with unexpected movement and may cause los ...
Reclining seatback
Sitting in a reclined position when the vehicle is in motion can be dangerous.
Even when buckled up, the protection of your restraint system (seat belts and air
bags) is greatly reduced by reclini ...
