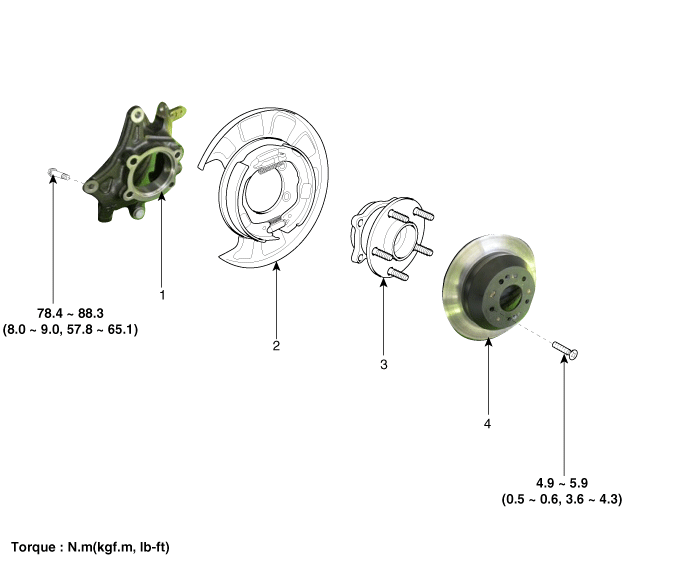

Components

1. Rear carrier assembly
2. Parking brake assembly
3. Rear hub assembly
4. Rear brake disc

Rear Axle Assembly
...

Rear Hub - Carrier Repair procedures
Removal 1. Remove the rear wheel and tire (A) from rear hub. Tightening torque: 88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)     Be careful not to damage to the ...
