Hyundai Tucson: Seats / Rear seats

Seatback angle

To recline the seatback:

1. Pull up the seatback lever.

2. Hold the lever and adjust the seatback to the position you desire.

3. Release the lever and make sure the seatback is locked in place.

(The lever MUST return to its original position for the seatback to lock.)

Folding the rear seat

The rear seatbacks can be folded to facilitate carrying long items or to increase the luggage capacity of the vehicle.

WARNING

1. Insert the rear seat belt buckle in the pocket between the rear seatback and cushion, and insert the rear seat belt webbing in the guide to prevent the seat belt from being damaged.

2. Use a key to release the rear center seat belt from the center buckle.

3. Retract the center seat belt webbing into the headliner, and clip the small tab into the holder.

4. Set the front seatback to the upright position and, if necessary, slide the front seat forward.

5. Lower the rear headrests to the lowest position.

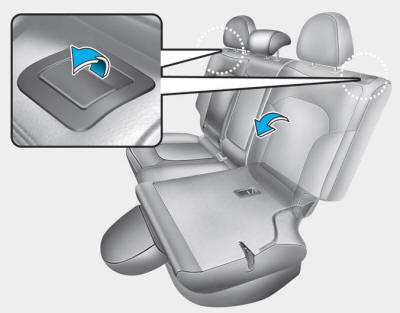

6. Pull up the seatback lever, then fold the seat toward the front of the vehicle.

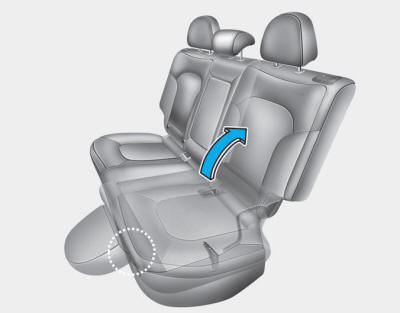

7. To use the rear seat, lift and push the seatback backward. Push the seatback firmly until it clicks into place. Make sure the seatback is locked in place.

When returning the rear seatbacks to the upright position, remember to return the rear shoulder belts to their proper position.

WARNING

When returning the rear seatback from a folded to an upright position, hold the seatback and return it slowly. Ensure that the seatback is completely locked into its upright position by pushing on the top of the seatback. In an accident or sudden stop, the unlocked seatback could allow cargo to move forward with great force and enter the passenger compartment, which could result in serious injury or death.

WARNING

Do not place objects in the rear seats, since they cannot be properly secured and may hit vehicle occupants in a collision causing serious injury or death.

WARNING

Make sure the engine is off, the shift lever is in P (Park), and the parking brake is securely applied whenever loading or unloading cargo. Failure to take these steps may allow the vehicle to move if the shift lever is inadvertently moved to another position.

Seatback pocket
The seatback pocket is provided on the back of the front seatbacks. WARNING To prevent the occupant classification system from malfunctioning: Do not place any items total weighing over 2.2 ...

Armrest
The armrest is located in the center of the rear seat. Pull the armrest down from the seatback to use it. You will find cup holders on the center armrest. ...
