Hyundai Tucson: Seat belts / Seat belt warning light

Seat belt warning light (for driver’s seat)

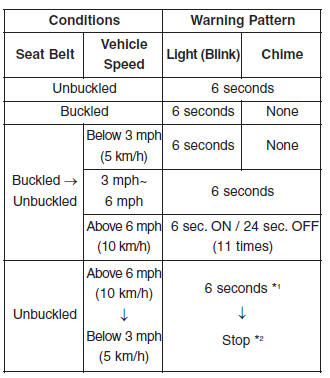

The driver’s seat belt warning light and chime will come on according to the following table when the ignition switch is in the ON position.

*1 : The Warning Pattern repeats 11 times with an interval of 24 seconds. If the driver's seat belt is buckled, the light will stop within 6 seconds and chime will stop immediately.

*2 : The light will stop within 6 seconds and chime will stop immediately.

Seat belt safety precautions
Always fasten your seat belt and make sure all passengers have fastened their seat belts before starting any trip. Air bags are designed to supplement the seat belt as an additional safety device, ...

Seat belt restraint system
...
