Hyundai Tucson: Manual Transaxle Control System / Shift Lever Components and Components Location

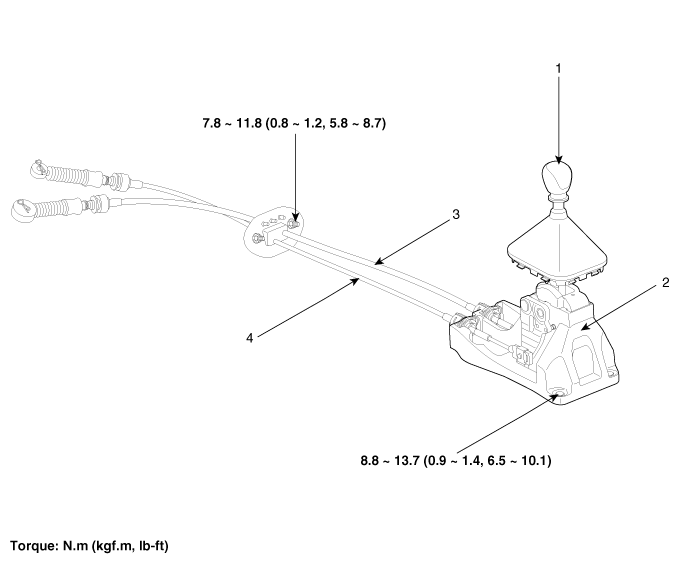

Components

1. Shift lever knob
2. Shift lever assembly
3. Select cable assembly
4. Shift cable assembly

Manual Transaxle Control System
...

Shift Lever Repair procedures
Removal 1. Remove the center console. (Refer to "Console" in BD group) 2. Remove the snap pin (A) and the clip (B). 3. Remove the clip (A) and then remove the shift cable assembly. 4. ...
