Hyundai Tucson: Setup / Sound Settings

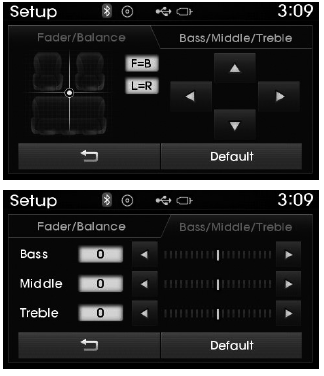

Sound Settings
Press the
key
Select [Sound]
Select [Sound Setting]
Use the
,
,
,
buttons to adjust the Fader/Balance
settings.
Use the
,
buttons to adjust the Bass/Middle/Treble
settings.
Press the
button to reset.

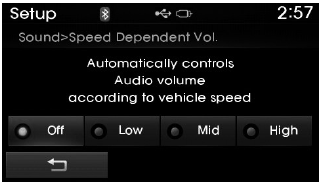

SDVC (Speed Dependent Volume Control)
Press the
key
Select [Sound]
Select [Speed Dependent Vol.]
The volume level is controlled automatically according to the vehicle speed. SDVC can be set by selecting from Off/Low/Mid/High.

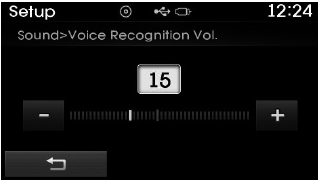

Voice Recognition Volume
Press the
key
Select [Sound]
Select [Voice Recognition Vol.]
Turn the
TUNE knob to adjust the
Voice Recognition volume.

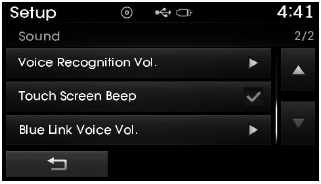

Touch Screen Beep
Press the
key
Select [Sound]
Select [Touch Screen Beep]
This feature is used to turn the touch screen beep on/off.

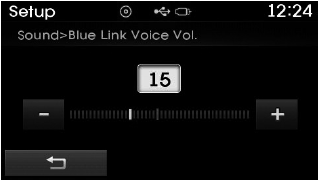

Blue Link Voice Volume
Press the
key
Select [Sound]
Select [Blue Link Voice Vol.]
Turn the
TUNE knob to adjust the
Blue Link Voice Volume.
❈ Blue Link® may differ depending on the selected audio.
Display Settings
Adjusting the Brightness
Press the key
Select [Display]
Select [Brightness]
Use the ,
buttons to adjust the screen brightness
or set the Brightness on Automatic, ...
Clock/Calendar Setting
Clock Setting
Press the key
Select [Clock/Calendar]
Select [Clock Settings]
Use the ,
buttons to set the Hour, Minutes and
AM/PM setting.
✽ NOTICE
Press and hold the key
(ov ...
