Hyundai Tucson: Electric Power Steering / Steering Gear box Components and Components Location

Hyundai Tucson (LM) 2010-2015 Service Manual / Steering System / Electric Power Steering / Steering Gear box Components and Components Location

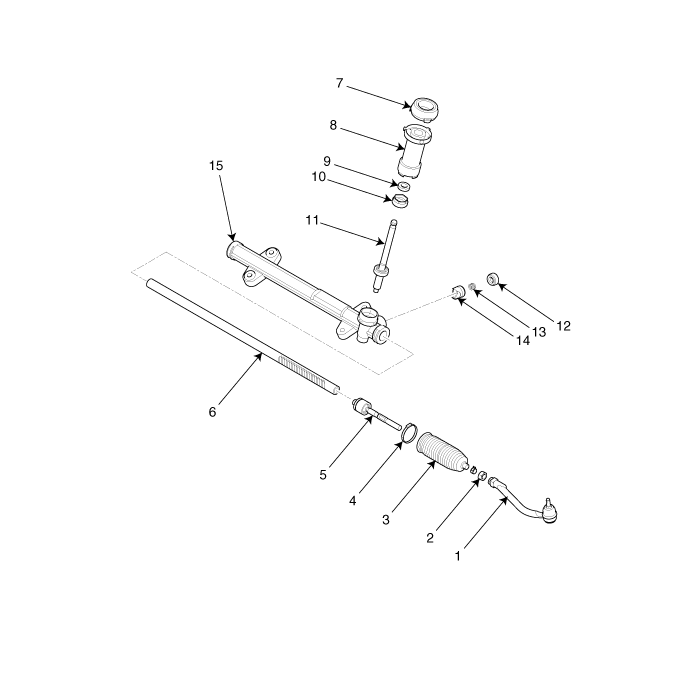

Components

1. Tie rod end
2. Lock nut
3. Bellows
4. Bellows band
5. Tie rod
6. Rack bar
7. Dust packing
8. Dust cap
9. Oil seal
10. Pinion plug
11. Pinion assembly
12. Yoke plug
13. Yoke spring
14. Support yoke assembly
15. Rack housing

Steering Column and Shaft Repair procedures
Replacement 1. Disconnect the battery negative cable from the battery and then wait for at least 30 seconds. 2. Turn the steering wheel so that the front wheels can face straight ahead. 3. ...

Steering Gear box Repair procedures
Replacement 1. Remove the front wheel & tire. Tightening torque : 88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)     Be careful not to damage to the hub bolts w ...
