Hyundai Tucson: Trip computer / Trip Modes

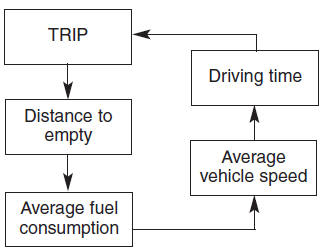

Push the button to select the following modes:



Tripmeter

This mode indicates the distance of individual trips selected since the last tripmeter reset.

The meter's working range is from 0.0 to 999.9 miles (0.0 to 9999.9 km).

Pressing the TRIP button for more than 1 second, when the tripmeter is displayed, clears the tripmeter to zero (0.0).

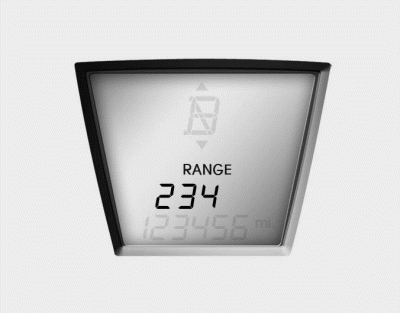

Distance to empty

This mode indicates the estimated distance to empty based on the current fuel in the fuel tank and the amount of fuel delivered to the engine. When the remaining distance is below 30 miles (50 km), “----” will be displayed and the distance to empty indicator will blink.

The meter’s working range is from 30 to 9999 miles (50 to 9999 km).

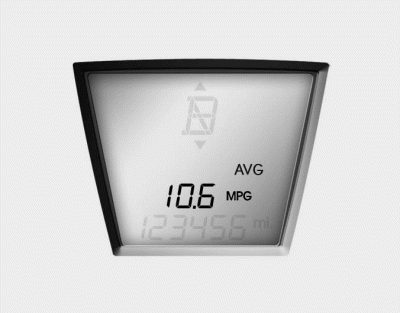

Average fuel consumption

This mode calculates the average fuel consumption from the total fuel used and the distance since the last average consumption reset.

Pressing the TRIP button for more than 1 second, when the average fuel consumption is displayed, clears the average fuel consumption to zero (--.-).

✽ NOTICE

The average fuel consumption is not displayed for more accurate calculation if the vehicle is not driven more than 10 seconds or 0.186 miles (300 meters) since the ignition switch is placed in the ON position.

✽ NOTICE

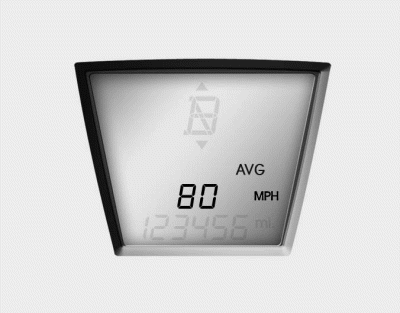

Average vehicle speed

This mode calculates the average speed of the vehicle since the last average speed reset.

Even if the vehicle is not in motion, the average speed is calculated while the engine is running.

Pressing the TRIP button for more than 1 second, when the average speed is being displayed, clears the average speed to zero (---).

✽ NOTICE

The average vehicle speed is not displayed if the driving distance is less than 0.186 miles (300 meters) or the driving time is less than 10 seconds since the ignition switch or Engine Start/Stop button is turned to ON.

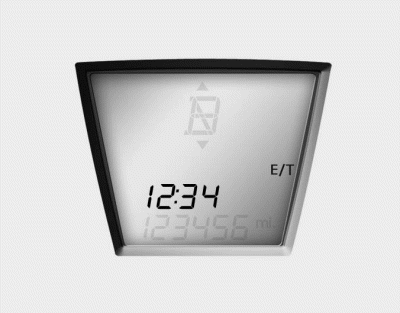

Driving time

This mode indicates the total time traveled since the last driving time reset.

Even if the vehicle is not in motion, the driving time is calculated while the engine is running.

The meter’s working range is from 0:00~99:59.

Pressing the TRIP button for more than 1 second, when the driving time is being displayed, clears the driving time to zero (0:00).
