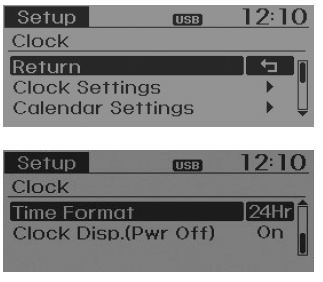

Press the key
Select [Clock] through
TUNE knob or
key
Select menu through
TUNE knob

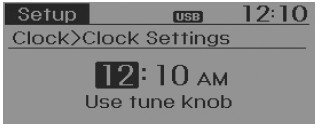

Clock Settings
This menu is used to set the time. Select [Clock Settings]
Set through
TUNE knob
Press
TUNE knob
❈ Adjust the number currently in focus to set the [hour] and press the tune knob to set the [minute].

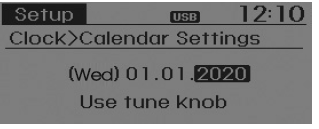

Calendar Settings
This menu is used to set the date. Select [Calendar Settings]]
Set through
TUNE knob
Press
TUNE knob
❈ Adjust the number currently in focus to make the settings and press the tune knob to move to the next setting. (Set in order of Year/Month/Day)
Time Format
This function is used to set the 12/24 hour time format of the audio system.
Select [Time Format]
Set 12Hr / 24Hr through
TUNE knob
Clock Display when Power is OFF
Select [Clock Disp.(Pwr Off)] Set
/
through
TUNE knob
