Hyundai Tucson: Engine Control System / Variable Intake Solenoid (VIS) Valve Schematic Diagrams

Hyundai Tucson (LM) 2010-2015 Service Manual / Engine Control / Fuel System / Engine Control System / Variable Intake Solenoid (VIS) Valve Schematic Diagrams

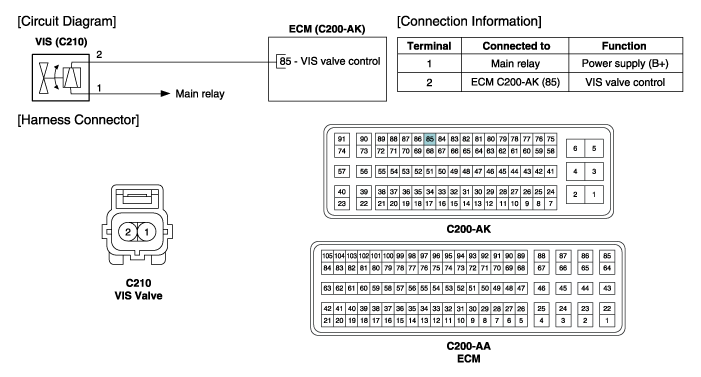

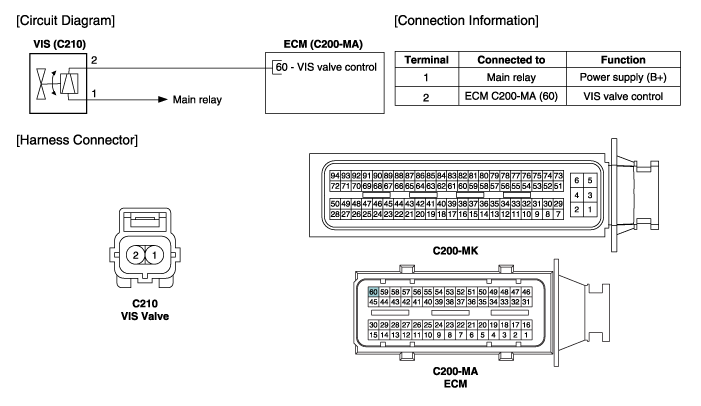

Circuit Diagram
(M/T)

(A/T)

Variable Intake Solenoid (VIS) Valve Specifications
Specification ItemSpecificationCoil resistance (x)30.0 ~ 35.0 [20°C(68°F)] ...

Variable Intake Solenoid (VIS) Valve Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the VIS valve connector. 3. Measure resistance between VIS valve terminals 1 and 2. Specification: Refer to "Specification" ...
