Inspection

1.	Connect the battery voltage and check the blower motor rotation.

2.	If the blower motor voltage is not operated well, substitute with a known-good blower motor and check for proper operation.

3.	If the problem is corrected, replace the blower motor.

Replacement

1.	Disconnect the negative (-) battery terminal.

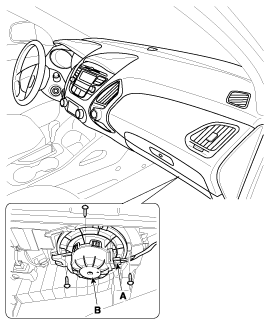

2.	Disconnect the connector (A) of the blower motor.

3.	Remove the blower motor (B) after loosening the mounting screws.

4.	Install in the reverse order of removal.

Blower Unit Repair procedures

Replacement 1. Disconnect the negative (-) battery terminal. 2. Remove the heater and blower unit. (Refer to Heater - "Heater Unit") 3. Remove the blower unit (A) from the heater unit ...

Power Mosfet Repair procedures

Inspection 1. Ignition "ON" 2. 2. Manually operate the control switch and measure the voltage of blower motor. 3. Select the control switch to raise voltage until high speed. Specificatio ...
