Inspection

Press the OFF switch more then 4 times within 2 seconds while pressing the MODE switch.

Display	Fail description
00	Normal
50	Cluster ion generator fault

* Diagnostic procedure refer to DTC code.

Replacement

1.	Disconnect the negative (-) battery terminal.

2.	Remove the extension cover (A).

3.	Disconnect the damper (A) from the glove box (B).

4.	Remove the glove box lift (A).

5.	Disconnect the pine (A), then remove the glove box (B).

6.	Remove the crash pad passenger panel (A).

7.	Remove the glove box housing (A).

8.	Remove the shower duct (A).

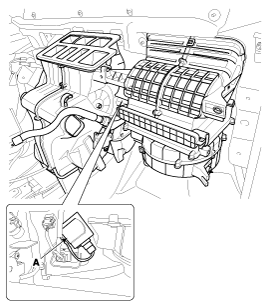

9.	Loosen the screws and then remove the cluster ionizer (A).

10.	Install in the reverse order of removal.
