Hyundai Tucson: Indicators And Gauges / Components and Components Location

Hyundai Tucson (LM) 2010-2015 Service Manual / Body Electrical System / Indicators And Gauges / Components and Components Location

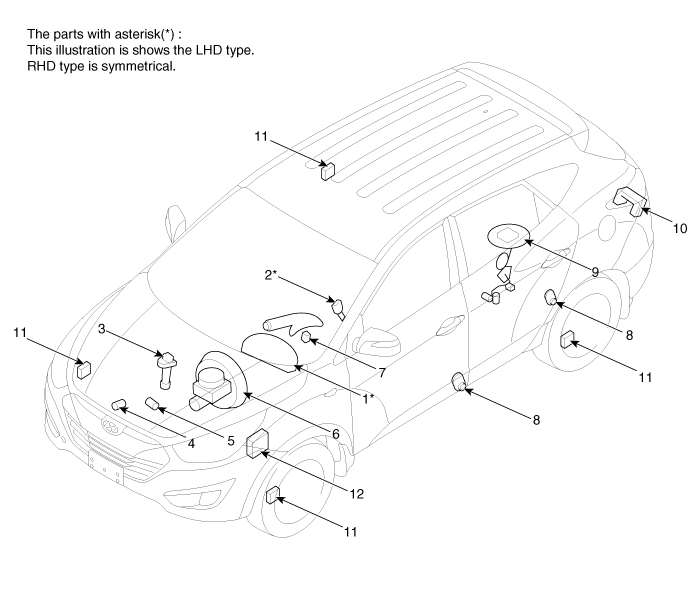

Component Location

1. Cluster assembly
2. Seat belt switch
3. Vehicle speed sensor
4. Engine coolant temperature sender
5. Oil pressure switch
6. Brake fluid level warning switch

7. Parking brake switch
8. Door switch
9. Fuel gauge sender
10. Liftgate switch
11. Wheel speed sensor
12. ABS ECU

Indicators And Gauges

...

Instrument Cluster Components and Components Location

Components (1) Components (2) ...
