Hyundai Tucson: Indicators And Gauges / Instrument Cluster Components and Components Location

Hyundai Tucson (LM) 2010-2015 Service Manual / Body Electrical System / Indicators And Gauges / Instrument Cluster Components and Components Location

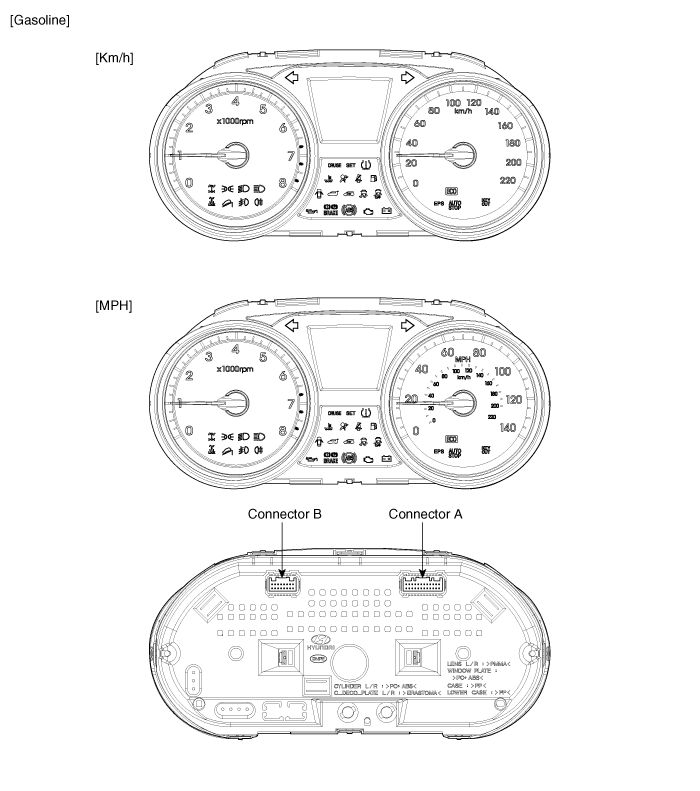

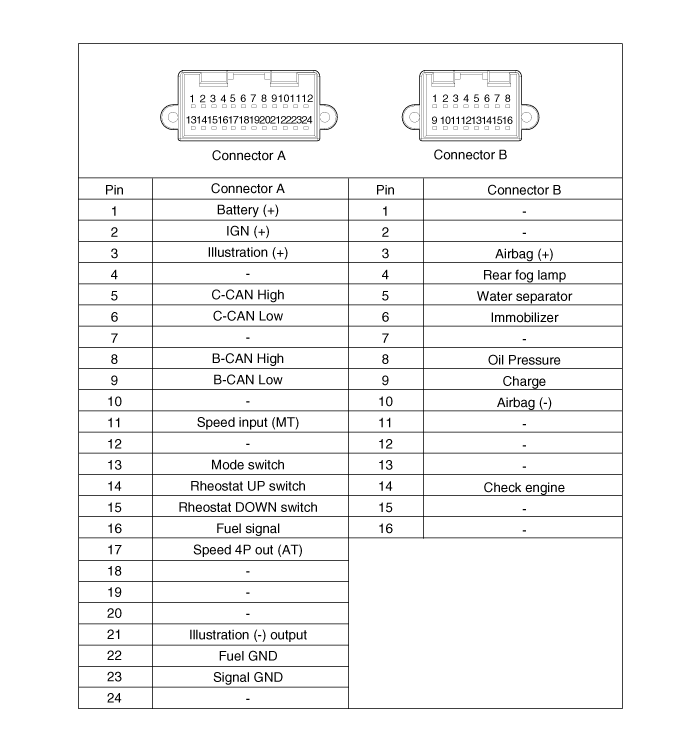

Components (1)

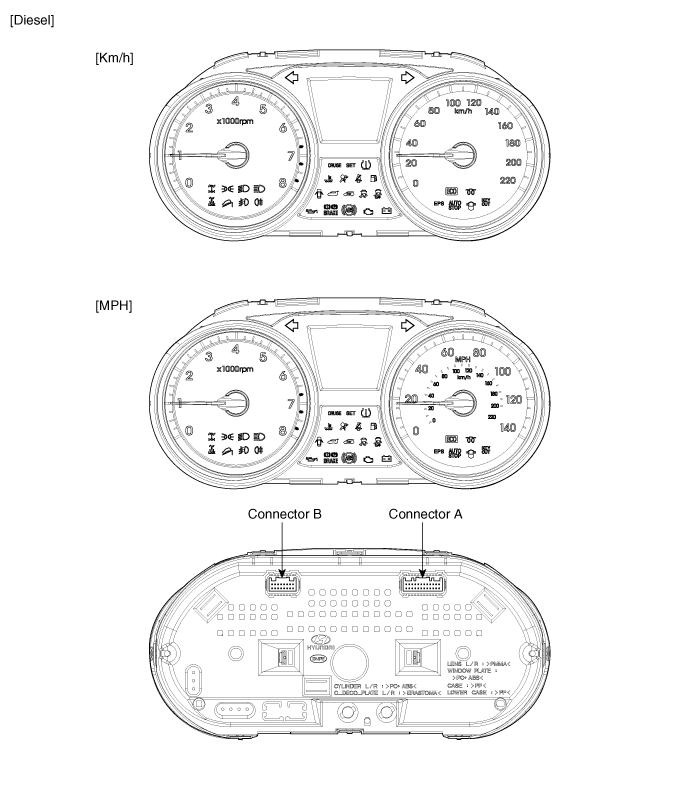

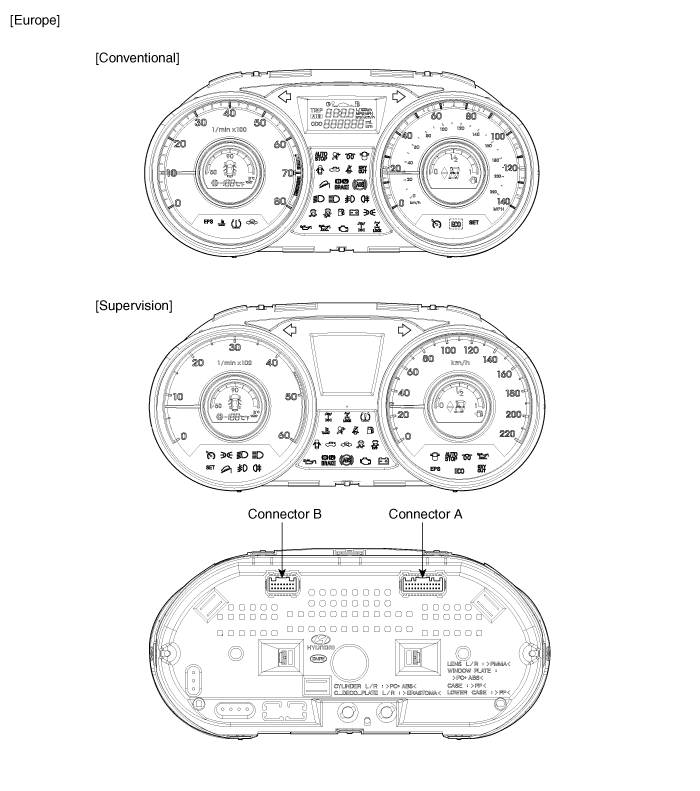

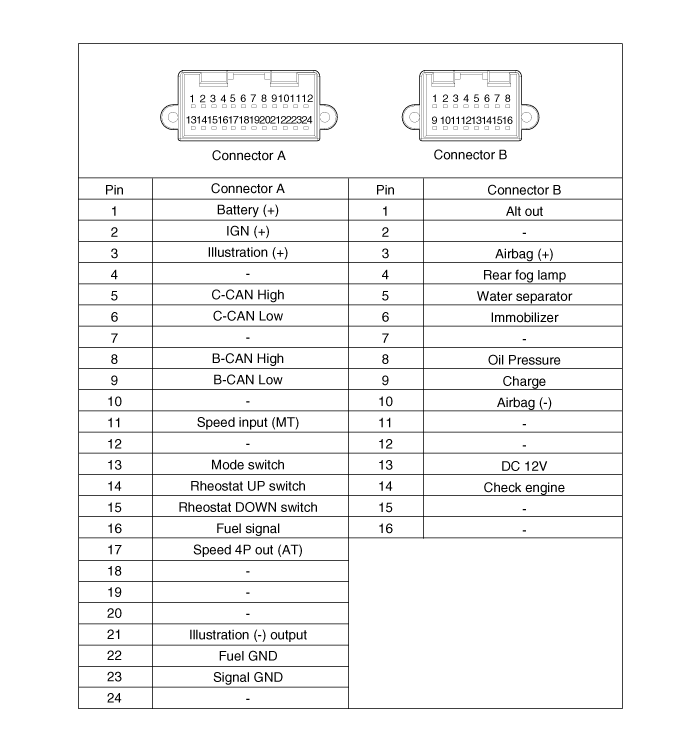

Components (2)

Components and Components Location
Component Location 1. Cluster assembly2. Seat belt switch3. Vehicle speed sensor4. Engine coolant temperature sender5. Oil pressure switch6. Brake fluid level warning switch7. Parking brake switc ...

Instrument Cluster Schematic Diagrams
Circuit Diagram (1) Circuit Diagram (2) Massage Flow Diagram ...
