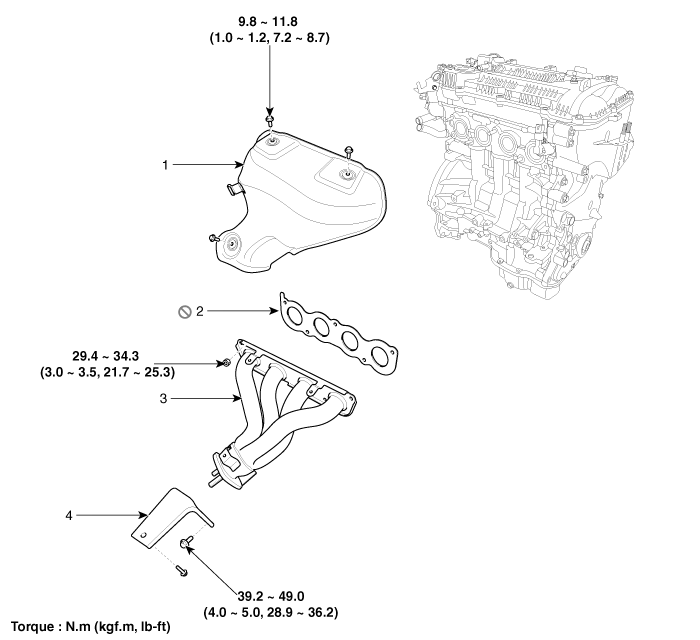

Components

1. Heat protector
2. Exhaust manifold gasket

3. Exhaust manifold
4. Exhaust manifold stay
