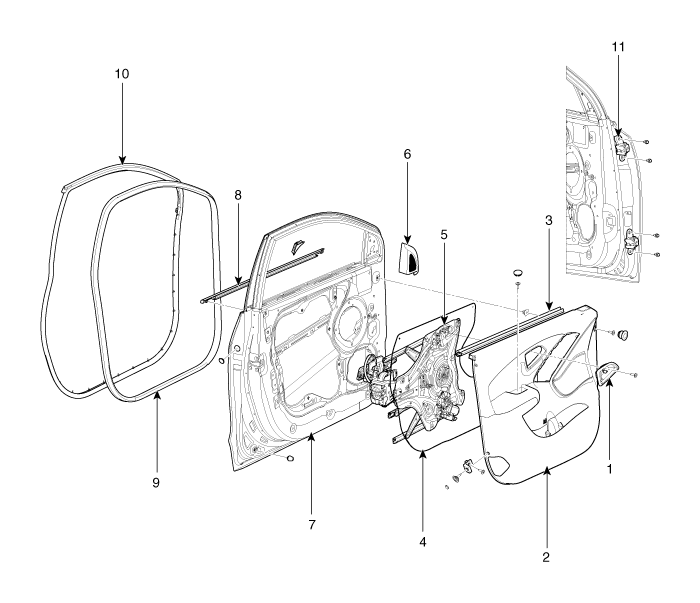

Components

1.Door inside handle housing
2. Door trim
3. Door belt inner weatherstrip
4. Door screen
5. Door module
6. Quadrant inner cover
7. Door panel
8. Door belt outside weatherstrip
9. Door side weatherstrip
10. Body side weatherstrip
11. Door hinge
