Hyundai Tucson: SRSCM / Passive Occupant Detection System (PODS) Components and Components Location

Hyundai Tucson (LM) 2010-2015 Service Manual / Restraint / SRSCM / Passive Occupant Detection System (PODS) Components and Components Location

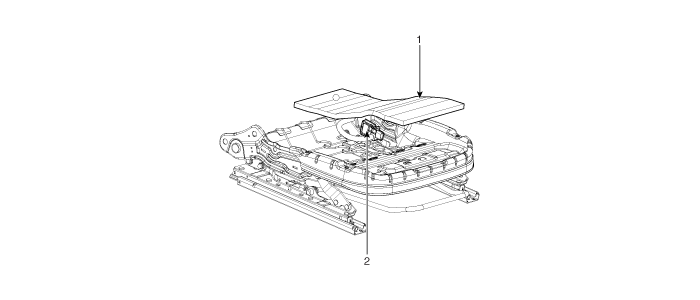

Components

1. Sensor mat
2. PODS Uint

Passive Occupant Detection System (PODS) Description and Operation
Description The system is intended to classify the occupancy status of the front passenger seat in a motor vehicle based upon the measured force on the bottom seat cushion. The system also com ...

Passive Occupant Detection System (PODS) Repair procedures
Removal 1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work. 2. Remove the front passenger seat assembly. (Refer to the Body group- Seat) 3. ...
