Playing/Pausing CD Tracks
Once an audio CD is inserted, the mode will automatically start and begin playing.

While playing, press the
button to pause and press
button
to play.
✽ NOTICE
Changing Tracks
Press the
key to move to the
previous or next track.
✽ NOTICE
key after
the track has been playing for 2 seconds will start the current track from the
beginning.
key before
the track has been playing for 1 seconds will start the previous track.Selecting from the List
Turn the
TUNE knob left/right to
search for the desired track.

Once you find the desired track, press the
TUNE knob to start playing.
Rewinding / Fast-forwarding Tracks
While playing, press and hold the
key (over 0.8 seconds) to rewind or
fast-forward the current track.
Scan
Press the
key to play the
first 10 seconds of each file.

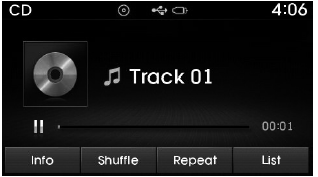

Basic Mode Screen
Audio CD Mode MenuHyundai Tucson (LM) 2010-2015 Service Manual: Specifications
