Hyundai Tucson: Charging System / Alternator Components and Components Location

Hyundai Tucson (LM) 2010-2015 Service Manual / Engine Electrical System / Charging System / Alternator Components and Components Location

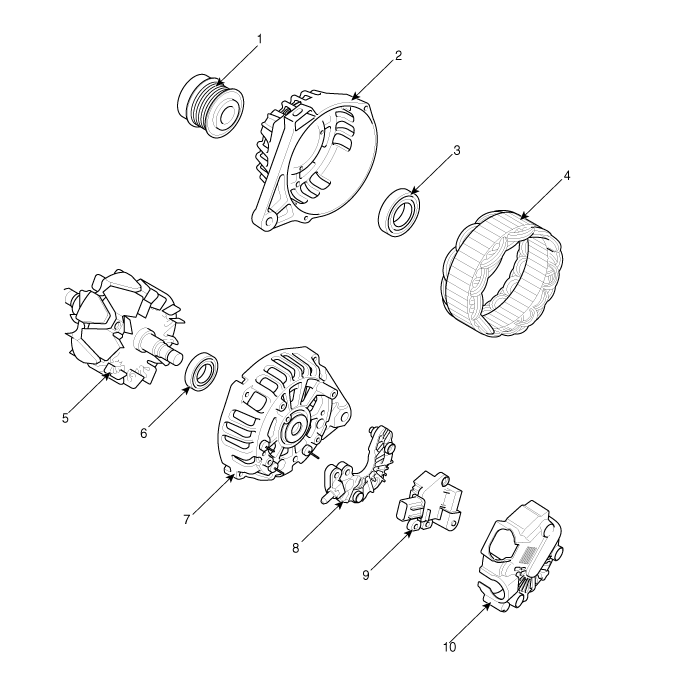

Components

1. OAD (Overrunning Alternator Decoupler) pulley
2. Front housing
3. Front bearing
4. Stator
5. Rotor

6. Rear bearing
7. Rear housing
8. Rectifier assembly
9. Regulator assembly
10. Rear cover

Alternator Specifications

Specification Alternator ItemSpecificationRated voltage13.5V, 120ASpeed in use 1,000 ~ 18,000 rpmVoltage regulatorIC Regulator built-in typeRegulator Setting VoltageExternal mode Refer to below ...

Alternator Schematic Diagrams

Circuit Diagram • COM signal - When controlling the voltage generated, the ECM sends the target voltage data to the alternator via a PWM signal.(High voltage: 4V or h ...
