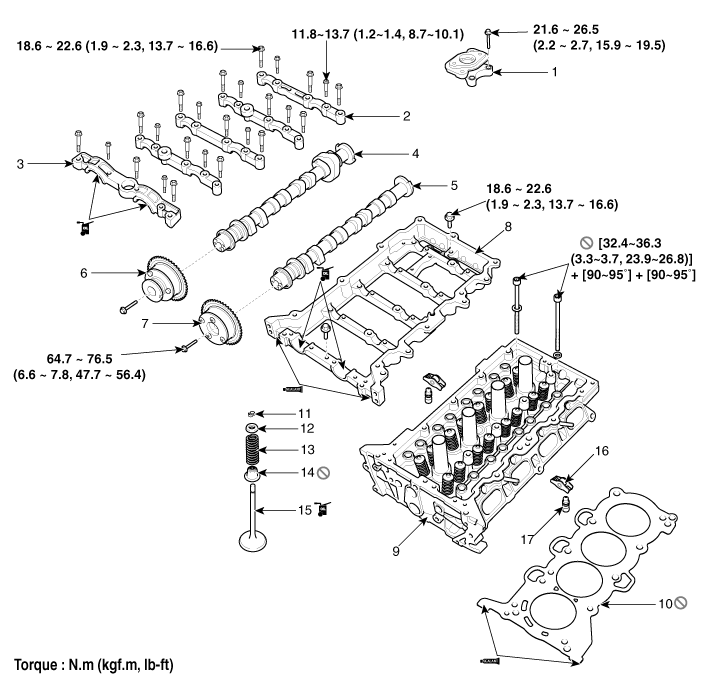

Components

1. Fuel pump adaptor
2. Camshaft bearing cap
3. Camshaft front bearing cap
4. Exhaust camshaft
5. Intake camshaft
6. Exhaust CVVT assembly

7. Intake CVVT assembly
8. Cam carrier
9. Cylinder head
10. Cylinder head gasket
11. Retainer lock
12. Retainer

13. Valve spring
14. Valve stem seal
15. Valve
16. Swing arm
17. HLA (Hydraulic lash adjuster)

Camshaft Repair procedures

Removal Timing chain cover removal is not required for this procedure. • Use fender covers to avoid damaging painted surfaces. • To avoid damage, unplug the wir ...

Cylinder Head Repair procedures

Removal Engine removal is not required for this procedure. • Use fender covers to avoid damaging painted surfaces. • To avoid damaging the cylinder head, wait un ...
