Hyundai Tucson: Intake And Exhaust System / Muffler Components and Components Location

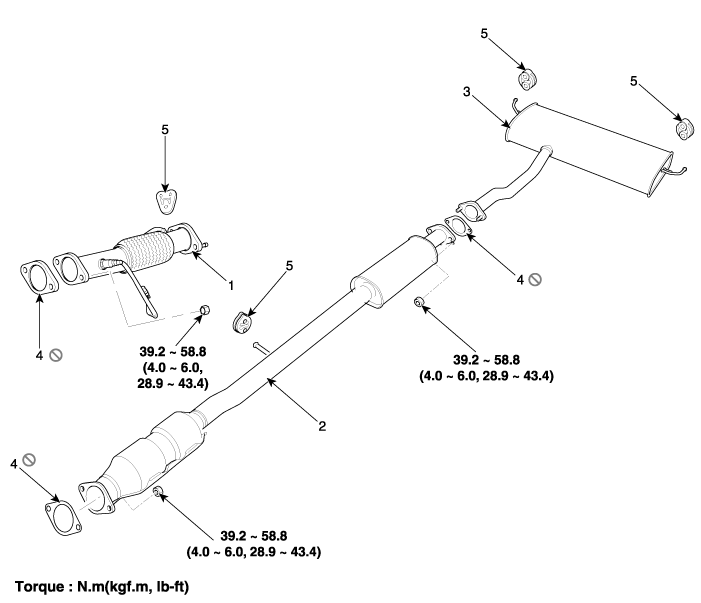

Components

1. Front muffler
2. Catalytic converter & center muffler assembly
3. Main muffler
4. Gasket
5. Hanger

Exhaust Manifold Repair procedures
Removal and Installation 1. Remove the engine cover. 2. Disconnect the battery negative terminal. Tightening torque: 3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 3.0 ~ 4.4 lb-ft) 3. Disconnect th ...

Muffler Repair procedures
Removal and Installation Front Muffler 1. Disconnect the front oxygen sensor connector (A) and then remove it from the bracket. 2. Remove the front muffler (B). Tightening torque : 39.2 ~ ...
