Hyundai Tucson: Lubrication System / Oil Pump Components and Components Location
Hyundai Tucson (LM) 2010-2015 Service Manual / Engine Mechanical System / Lubrication System / Oil Pump Components and Components Location
| Components |
| [Without Oil Level Sensor] |
| 1. Timing chain cover 2. Outer roter 3. Inner roter 4. Oil pump cover 5. Relief plunger 6. Relief spring 7. Relief plug | 8. O-ring (suction side) 9. O-ring (discharge side) 10. Oil screen gasket 11. Oil screen 12. Oil pan 13. Oil filter 14. OPS (Oil pressure switch) |

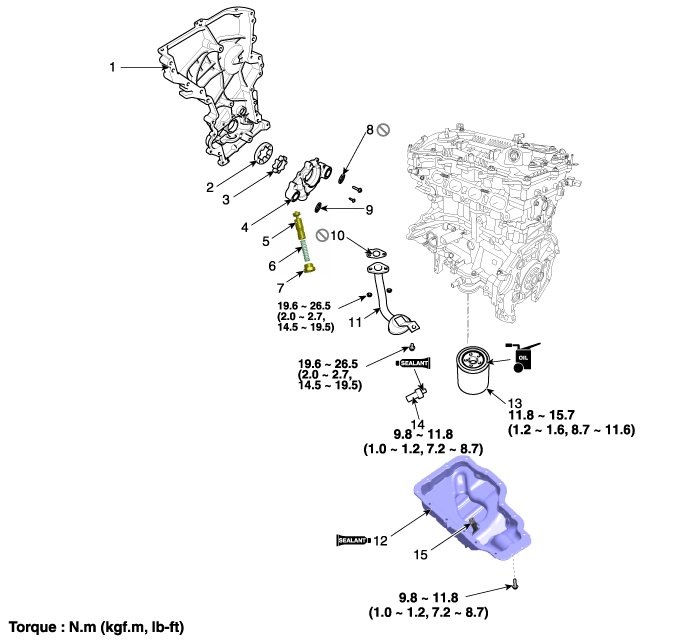

| [With Oil Level Sensor] |
| 1. Timing chain cover 2. Outer roter 3. Inner roter 4. Oil pump cover 5. Relief plunger 6. Relief spring 7. Relief plug | 8. O-ring (suction side) 9. O-ring (discharge side) 10. Oil screen gasket 11. Oil screen 12. Oil pan 13. Oil filter 14. OPS (Oil pressure switch) 15. Oil level sensor |
Engine Oil Flow Diagram
Engine Oil Schemetics
...
Oil Pump Repair procedures
Removal and Installation
1.
Remove the timing chain cover.
(Refer to Timing system in this group)
2.
Remove the oil pump cover (A).
Tightening torque
Screws :
5.9 ~ 8.8 N.m (0.6 ~ 0.9 k ...
