Hyundai Tucson: SRSCM / Seat Belt Buckle Switch (BS) Components and Components Location

Hyundai Tucson (LM) 2010-2015 Service Manual / Restraint / SRSCM / Seat Belt Buckle Switch (BS) Components and Components Location

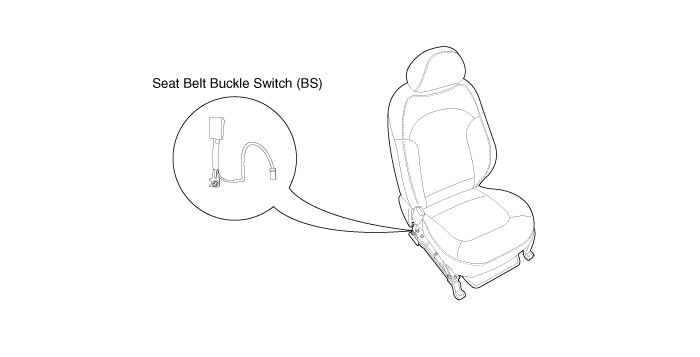

Components

Seat Belt Buckle Switch (BS) Description and Operation
Description The SRSCM shall monitor the status of the driver and front passenger seat belt buckle. The SRSCM provides one pin each for the driver and front passenger seat belt buckle status inp ...

Seat Belt Buckle Switch (BS) Repair procedures
Removal 1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work. 2. Remove the front seat assembly. (Refer to the Body group- Front seat) 3. Loo ...
