Hyundai Tucson: Smart Parking Assist System (SPAS) / Smart Parking Assist System Sensor Components and Components Location

Hyundai Tucson (LM) 2010-2015 Service Manual / Body Electrical System / Smart Parking Assist System (SPAS) / Smart Parking Assist System Sensor Components and Components Location

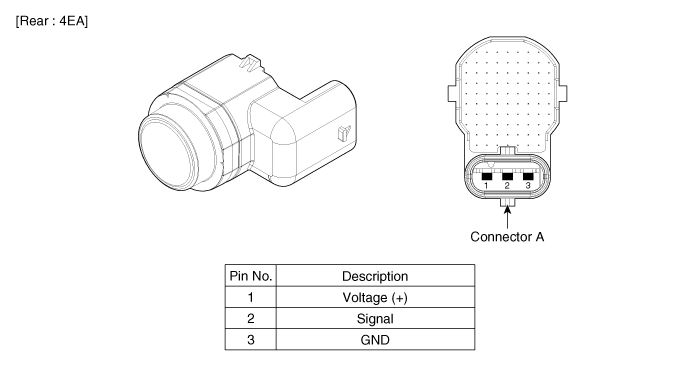

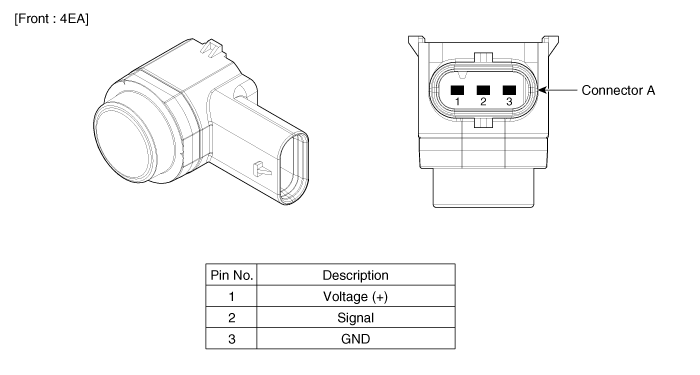

Component (1)

Component (2)

Component (3)

Smart Parking Assist System Speaker Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the crash pad lower panel. (Refer to the BD group - "Crash pad") 3. Remove the SPAS speaker (A) after disconnecting the ...

Smart Parking Assist System Sensor Repair procedures
Removal Front SPAS sensor 1. Remove the front bumper. (Refer to the BD group - "Front bumper") 2. Pull out the SPAS sensor (A) by opening the sensor holder out. 3. Disconnect the connect ...
