Hyundai Tucson (LM) 2010-2015 Service Manual / Heating, Ventilation and Air Conditioning / Air Conditioning System / Compressor Components and Components Location

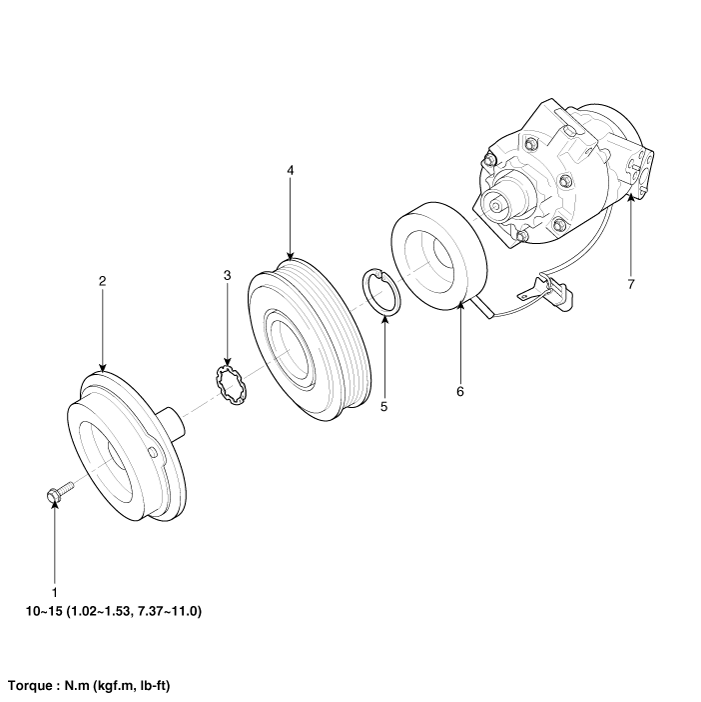

Components

1. Bolt
2. Disc & Hub Assembly
3. Retainer Ring (Pully)
4. Pully

5. Retainer Ring (Field coil)
6. Field Coil
7. Compressor Assembly

Refrigerant line Repair procedures

Replacement 1. Discharge refrigerant from refrigeration system. 2. Replace faulty tube or hose. Cap the open fittings immediately to keep moisture or dirt out of the sys ...

Compressor Repair procedures

Removal 1. If the compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine off. 2. Disconnect the negative ...
